12.1 Inch 1280x800 Innolux G121ICE-L01 IPS Industrial LCD Module Display LVDS 30 Pin 600cd/m2

Name: 121 Inch 1280x800 Innolux G121ICEL01 IPS Industrial LCD Module Display LVDS 30 Pin 600cdm2
Brand: AISON
Price: 1 USD

China 12.1 Inch 1280x800 Innolux G121ICE-L01 IPS Industrial LCD Module Display LVDS 30 Pin 600cd/m2 wholesale

Brand Name : AISON

Model Number : G121ICE-L01

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 300k/month

Delivery Time : 7 working days

Packaging Details : Blister Package/Carton

Name : 12.1 inch Innolux IPS Industrial TFT LCD Display

Resolution : 1280x800

Outline Size : 278(H)×184(V) ×10.5(D) mm

Active area : 261.12(W)×163.2(H) mm

Interface : LVDS 30PIN

Viewing angle : 89/89/89/89

Brightness : 600cd/m2

Display mode : Normally Black

Viewing Direction : ALL/IPS

Operating Temp : -30 ~ 80 °C

Storage Temp : -30 ~ 85 °C

Contact Now

12.1 Inch 1280x800 Innolux G121ICE-L01 IPS Industrial LCD Module Display LVDS 30 Pin 600cd/m2

General Description

Innolux Corporation (hereafter called Innolux) G121ICE-L01 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, Hight Brightness, WLED Backlight, Life ≥ 50K hours, With LED Driver, 6/8 bit, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc.

General Data

Model Name	Innolux 12.1 inch TFT Display G121ICE-L01
Resolution	1280x800
Model Size (WHT)	278(W)×184(H)×10.5(D) mm
Display Area (W*H)	261.12(W)×163.2(H) mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Viewing	IPS
Brightness	400 cd/m2
Pin number	30 pin
Contrast Ratio	1000:1
Operating temperatures	-20 ~ 70 °C
Storage temperatures	-20 ~ 70 °C

Product Details

12.1 Inch 1280x800 Innolux G121ICE-L01 IPS Industrial LCD Module Display LVDS 30 Pin 600cd/m2

TFT Applications:

The 12.1 inch Innolux displays G121ICE-L01 G121ICE-L02 are suitable for Industrial application.

12.1 Inch 1280x800 Innolux G121ICE-L01 IPS Industrial LCD Module Display LVDS 30 Pin 600cd/m2

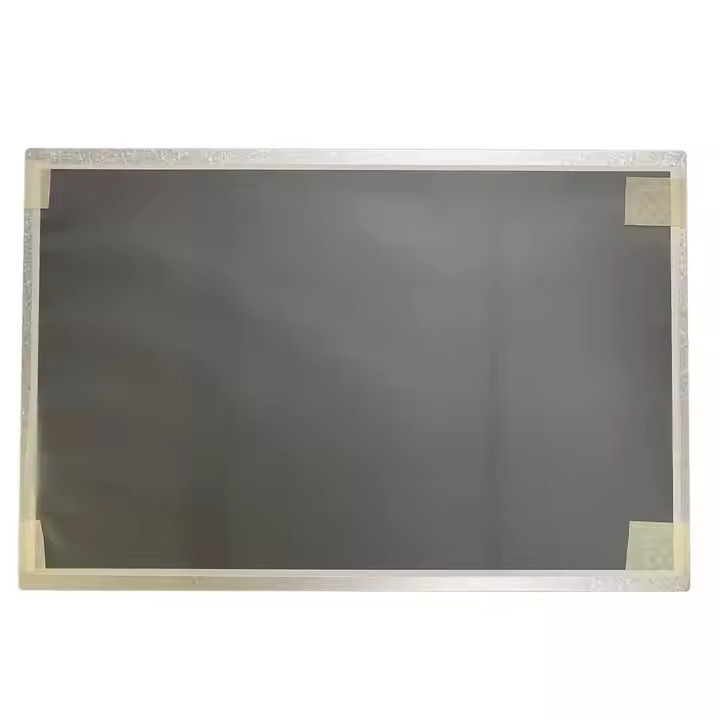

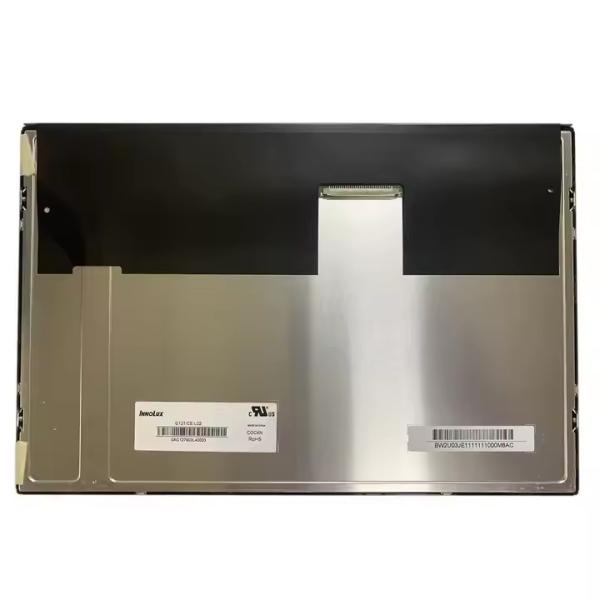

12.1 Inch 1280x800 Innolux G121ICE-L01 IPS Industrial LCD Module Display LVDS 30 Pin 600cd/m2 Images
